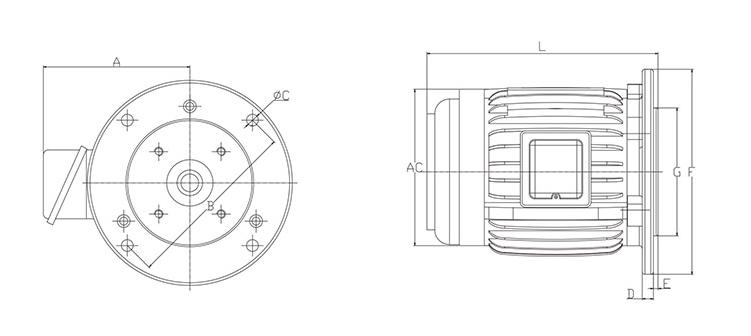

立式标准马达
型号 | A | B | C | D | E | F | G | L | AC |
1HP(0.75KW) | 135 | 180 | 12 | 11 | 4 | 210 | 130 | 250 | 175 |
2HP(1.5KW) | 145 | 200 | 12 | 13 | 7 | 32 | 160 | 285 | 195 |
3HP(2.2KW) | 155 | 215 | 14 | 13 | 7 | 255 | 180 | 325 | 216 |
5HP(3.75KW) | 170 | 215 | 14 | 15 | 4 | 250 | 180 | 330 | 236 |
7.5HP(5.5KW) | 195 | 265 | 15 | 15 | 4 | 305 | 230 | 358 | 270 |
10HP(7.5KW) | 195 | 265 | 15 | 15 | 4 | 305 | 230 | 395 | 270 |
